RD-10 Electric Chain Cutter
110 V / 220 V Electro-Hydraulic Chain Cutting Machine (10 mm / 3/8 in.)
The RD-10 Electric Chain Cutter uses an integrated electro-hydraulic system to cut Grade 60 chain up to 10 mm / 3/8 in. in approximately 2 seconds. Its 900 W motor is available in 110 V and 220 V configurations. With an 8 kg net weight, it is designed for portable chain cutting in workshops and on jobsites.
COMPACT POWER FOR PROFESSIONAL CHAIN CUTTING
The RD-10 Electric Chain Cutter is designed for cutting Grade 60 chain up to 10 mm / 3/8 in. It combines an electric motor and hydraulic cutting system for chain preparation, maintenance and replacement work.
A 900 W motor drives the integrated hydraulic system to deliver an approximately 2-second cutting cycle. The corded design is available in 110 V and 220 V configurations, with an 8 kg net weight for portable use.
10 mm / 3/8 in. Capacity
Cut Grade 60 chain up to 10 mm / 3/8 in. in diameter. Match both chain size and grade to the rated capacity.
Electro-Hydraulic Cutting
An electric motor drives the hydraulic system to provide controlled cutting force without an abrasive cutting wheel.
900 W Electric Motor
The 900 W motor is available in 110 V and 220 V configurations for different power supplies.
Portable Jobsite Design
The machine measures 495 × 145 × 110 mm and weighs 8 kg, making it suitable for transport between work areas.
BUILT AROUND A PROFESSIONAL HYDRAULIC SYSTEM
The RD-10 combines a corded electric motor with an integrated hydraulic cutting system. Its handle, front housing, hydraulic cylinder, pump case and motor housing form a portable platform for professional chain cutting.
COMPACT ELECTRO-HYDRAULIC ARCHITECTURE
An integrated electric and hydraulic system delivers controlled chain cutting in a portable 8 kg machine.
Ergonomic Handle
The handle helps the operator carry and position the cutter for chain cutting work.
Cutting Assembly Housing
The front housing supports the cutting assembly. Position the chain correctly within the cutting area before operation.
Hydraulic Cylinder
The hydraulic cylinder converts hydraulic pressure into the force used by the cutting mechanism.
Hydraulic Pump Case
The pump case encloses the hydraulic pumping components that supply pressure to the cutting system.
Motor Housing
The motor housing encloses the 900 W drive unit that powers the hydraulic system.
BUILT TO CUT 10 MM CHAIN
The RD-10 is rated for Grade 60 chain up to 10 mm / 3/8 in. in diameter. It supports chain cutting for workshop preparation, equipment maintenance and jobsite replacement tasks.
Rated capacity is based on Grade 60 chain. Cutting performance depends on chain material, hardness, grade, blade condition and correct positioning. Confirm compatibility for other chain specifications before use.
Jobsite Maintenance
Cut compatible chain to the required length for maintenance and replacement tasks where a suitable power supply is available.
Workshop Chain Preparation
Prepare lengths of Grade 60 chain within the 10 mm rated capacity for workshop orders and maintenance work.
Equipment Servicing
Cut chain during equipment servicing after the chain has been unloaded and secured for the task.
Chain Replacement
Remove sections of compatible chain for replacement work, matching the chain diameter and grade to the cutter rating.
Need help matching your chain? Send us the chain diameter, grade, material and application so we can confirm whether the RD-10 is suitable.
COMPARE CHAIN CUTTERSIS THE RD-10 RIGHT FOR YOU?
Choose the RD-10 for corded cutting of Grade 60 chain up to 10 mm / 3/8 in. Confirm your chain specification and available power supply before selecting a configuration.
Portable electric cutting for Grade 60 chain
- Grade 60 chain cutting up to 10 mm / 3/8 in.
- Approximately 2-second cutting speed
- An integrated electro-hydraulic cutting system
- 110 V or 220 V power options
- A 900 W motor and 8 kg net weight
- An iron carrying box for storage and transportation
Your chain or power requirements differ
- Your chain diameter exceeds 10 mm
- Your chain grade or hardness differs from the stated Grade 60 rating
- You need to cut stainless steel or another material requiring confirmation
- You need battery operation without a mains power connection
- Your work requires a different cutting head or tool configuration
- You cannot confirm the chain grade, material or diameter
RD-10 & OTHER CUTTING TOOLS
Select by the material being cut before comparing diameter. The RD-10 is a chain cutter; the other models below are rebar cutters with their own rated applications.
| Model | Max. Capacity | Power Type | Best Fit | Product |
|---|---|---|---|---|
| RD-10 · This Model | Grade 60 chain: 10 mm / 3/8 in. | Corded | Corded chain preparation, maintenance and replacement work | Current page |
| PC-20 | Rebar: #6 / 20 mm | Corded | Applications that regularly require capacity above 16 mm | View PC-20 → |
| PC-22 | Rebar: #7 / 22 mm | Corded | Larger reinforcement and fabrication requirements | View PC-22 → |
| PC-25 | Rebar: #8 / 25 mm | Corded | Heavy-duty reinforcement work requiring 25 mm capacity | View PC-25 → |
| PC-16B | Rebar: #5 / 16 mm | Cordless | Cordless rebar cutting up to #5 / 16 mm | View PC-16B → |
Selection rule: match the tool to the material, grade and diameter. Rebar diameter ratings are not chain cutting ratings. Contact POWER ELECTRICAL to confirm suitability for your chain.

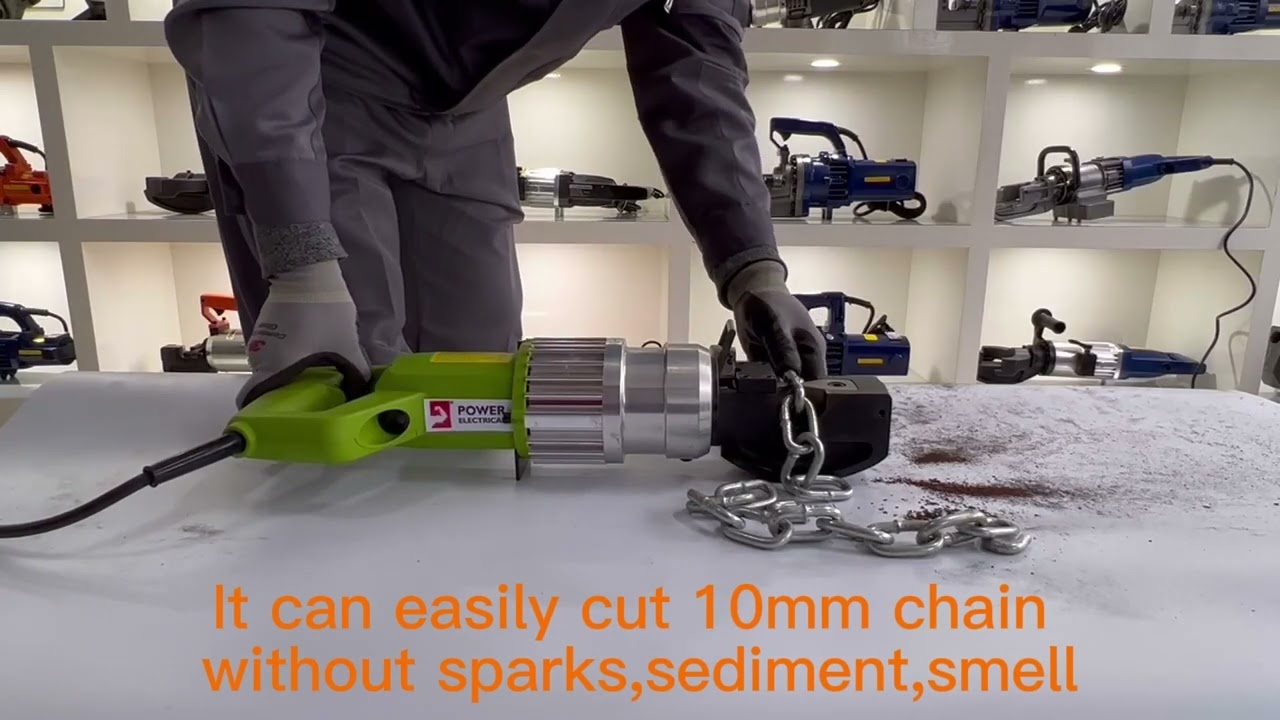

SEE THE RD-10 IN ACTION
Watch the RD-10 perform a complete electro-hydraulic cutting cycle and see how its compact design delivers fast, controlled chain cutting for professional jobsite use.
RD-10 Electric Chain Cutter
See the complete cutting cycle, blade action and professional jobsite operation of the RD-10 portable electro-hydraulic chain cutter.
RD-10 Electric Chain Cutter
RD-10 TECHNICAL DATA
Review the key technical specifications of the RD-10 electric chain cutter, including cutting capacity, electrical configuration, construction and operating characteristics.
Product Specifications
Model RD-10Multiple Voltage Configurations Available
RD-10 is available in 110 V and 220 V configurations. Contact POWER ELECTRICAL to confirm the correct voltage and plug configuration for your market.
Specifications may vary by voltage configuration and market. Product specifications are subject to technical updates without prior notice. Please contact POWER ELECTRICAL for the latest technical data before ordering.
WHAT'S INCLUDED & READY TO SUPPORT
The RD-10 is supplied as a complete professional cutting solution with essential operating accessories. Replacement blades and service parts are also available to support long-term maintenance and field operation.
What's Included
Standard equipment supplied with the RD-10 electric chain cutter.
RD-10 Chain Cutter
Main electro-hydraulic cutting tool
Carrying Case
Inner iron box with outer 7-layer corrugated cardboard box
Service Tool Kit
Basic maintenance tools
Operation Manual
Operating and maintenance instructions
Service & Maintenance
Essential maintenance components for reliable long-term operation.
Cutting Blades
Replaceable cutter blades
Hydraulic Seals
Hydraulic system service parts
Carbon Brushes
Motor maintenance components
Replacement Parts Available
Cutting Blade Set
Fixed and moving blade components
Brush Holder
Motor brush holder assembly
Hydraulic Seal Kit
Seals for hydraulic service
Motor Components
Service components for motor repair
Hydraulic Components
Pump and hydraulic system parts
Fasteners & Hardware
Selected replacement hardware
Need help with maintenance or repair? Access repair videos or contact POWER ELECTRICAL for technical support and RD-10 replacement parts.
PRODUCT INFORMATION & TECHNICAL SUPPORT
Access essential RD-10 product documents, repair resources and technical support. Find operating information, maintenance guidance and answers to common questions in one place.
RD-10 Documents
Download technical and operating information for the RD-10 chain cutter.
Need Help With Your RD-10?
Access repair guidance, replacement parts and direct technical assistance from POWER ELECTRICAL.
RD-10 FAQ
Common questions about RD-10 cutting capacity, operation, maintenance and product support.
Still have a question about the RD-10?
Send us your chain diameter, grade, material, application and technical questions. Our team will help confirm the appropriate RD-10 configuration and provide product support.
NEED AN ELECTRIC CHAIN CUTTER?
Tell us your chain diameter, grade, material, application, voltage and order quantity. Our team will help confirm the RD-10 configuration for your maintenance, distribution or OEM requirements.
Talk to Our Product Team
Contact POWER ELECTRICAL for product selection, distributor pricing, technical information and international supply inquiries.
