RBC-16B Cordless Rebar Bender Cutter
Cordless Battery-Powered Tool | 360° Rotating Head
The RBC-16B cordless rebar bender cutter combines cutting and bending with a 360° rotating head for flexible positioning. It features 21V DC battery power, a 0°–180° bending range and an 18 kg net weight. The specified charging time is 180 minutes, with 180 cuts or 80 bends per battery charge.
PORTABLE POWER FOR PROFESSIONAL REBAR CUTTING & BENDING
The RBC-16B cordless rebar bender and cutter combines two rebar preparation functions with a 360° rotating head. Maximum bending capacity is #5 / 16 mm rebar, with 21V DC battery power and an adjustable 0°–180° bending range.
With a net weight of 18 kg, the RBC-16B can be moved between work areas. Its specified operating times are a 3-second cutting / 5-second bending cycle and a wide 0° to 180° bending range for rebar forming within the specified material limits.
#5 / 16 mm Bending Capacity
Bends rebar up to 5/8 in. (16 mm / #5). Match the bar grade and diameter to the rated bending capacity.
Cordless Power & 360° Rotating Head
Cordless battery operation supports movement between work areas. The 360° rotating head allows the cutting and bending assembly to be positioned for the task.
0°–180° Angle Control
A 0°–180° bending range supports a variety of reinforcement shapes. Follow the operating instructions for each bend.
Cutting 3 s / Bending 5 s
Specified cutting and bending times are 3 seconds and 5 seconds respectively. Actual cycle times depend on the bar and operating conditions.
BUILT AROUND A 360° ROTATING BODY
The RBC-16B cordless rebar bender cutter features a 360° rotating body for flexible working positions. Its 21V DC battery power, 0°–180° bending range and 18 kg net weight support rebar preparation across work areas.
CORDLESS CUTTING & BENDING ARCHITECTURE
Maximum bending capacity: #5 / 16 mm (5/8 in.) rebar. Machine dimensions: 570 × 285 × 160 mm.
Brushless Motor
The brushless motor powers the hydraulic system for cordless rebar cutting and bending without carbon brush replacement.
Precision Pressure Release Valve
The precision pressure release valve allows controlled release of hydraulic pressure during operation, as directed in the operating instructions.
Angle-Controlled Bending Module
The bending module allows the operator to set the required bending angle within the 0°–180° range for rebar preparation.
Cutting Head Assembly
The cutting head assembly houses the cutting components for the RBC-16B’s integrated rebar cutting function.
360° Rotating Body
The machine body rotates through 360°, allowing flexible positioning for rebar cutting and bending in different working positions.
BENDING CAPACITY UP TO #5 REBAR
The RBC-16B provides a maximum bending capacity for reinforcing steelof 16 mm / 5/8 in. / #5 rebar, a wide 0° to 180° bending range and specified 3-second cutting / 5-second bending times for rebar preparation within the rated material limits.
The maximum specified rebar diameter is 16 mm. Follow the product manual and specified material limits.
Construction
Prepare reinforcement bends for columns, beams and foundations within the #5 / 16 mm bending rating.
Rebar Fabrication
Combine cutting and bending tasks in one portable tool for reinforcement preparation. Confirm the required cutting capacity before selection.
Infrastructure
Move the 18 kg cordless tool between work areas and use its 360° rotating head to position the working assembly.
Bridge Engineering
Prepare reinforcement bends for bridge-related work where the specified bar grade, diameter and bending requirements match the tool.
Need a different bending capacity? Explore the POWER ELECTRICAL rebar bender cutter range to select the right machine for your required bar size, bending angle and application.
COMPARE REBAR TOOLS & CUTTERSREBAR CUTTING & BENDING IN ACTION

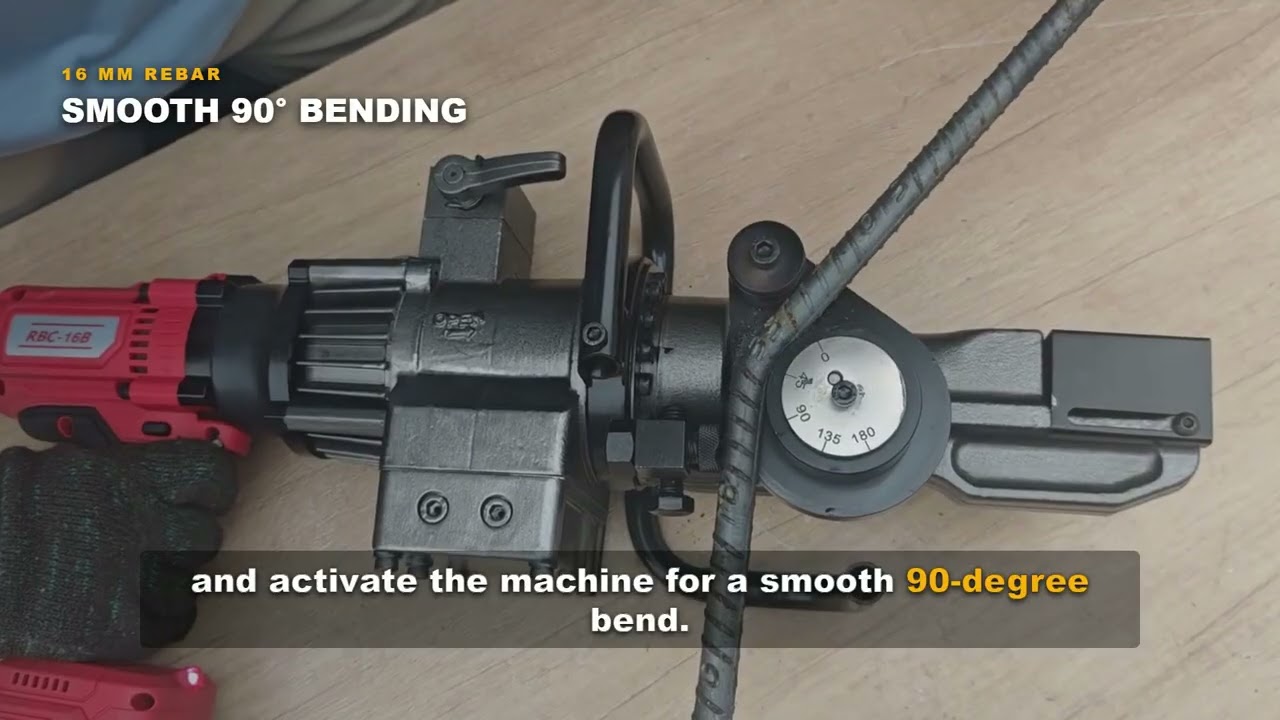

Watch the RBC-16B cordless rebar bender cutter demonstration. The RBC-16B combines cordless operation with a 360° rotating head and an adjustable 0°–180° bending range.
Watch the RBC-16B in Action
Watch the RBC-16B cordless rebar bender cutter demonstration. The RBC-16B combines cordless operation with a 360° rotating head and an adjustable 0°–180° bending range.
Cordless Rebar Bender & Cutter
RBC-16B TECHNICAL DATA
Review the RBC-16B specifications: #5 / 16 mm bending capacity, 0°–180° bending angle, 360° head rotation, 21V DC battery power, dimensions and packaging.
Product Specifications
Model RBC-16BCordless Configuration & Rotating Head
The RBC-16B features cordless operation and a 360° rotating head. The 21V DC system provides 180 cuts or 80 bends per battery charge, with a specified charging time of 180 minutes.
Maximum rebar diameter: 16 mm. Specified performance is 3 seconds per cut, 5 seconds per bend, 180 cuts or 80 bends per battery charge. Actual performance varies with material and operating conditions.
PROTECTIVE PACKAGING & PRODUCT SUPPORT
The RBC-16B is packed in an inner iron box with an outer 7-layer corrugated cardboard box. Gross weight is 28 kg. Contact POWER ELECTRICAL to confirm the accessory list and model-specific service parts for your order.
Machine & Packaging
RBC-16B machine and packaging specifications for handling and shipment.
RBC-16B Rebar Bender Cutter
Cordless battery-powered machine; net weight 18 kg
Inner Iron Box
Inner protective packaging for the machine
Outer 7-Layer Carton
Outer 7-layer corrugated cardboard box
28 kg Gross Weight
Packing dimensions: 690 × 365 × 320 mm
Operation & Service Support
Contact our team to identify compatible parts and confirm availability for your RBC-16B.
Operating Guidance
Request the RBC-16B operating and maintenance instructions
Bending Components
Confirm model-specific bending parts with our team
Electrical Parts
Confirm the battery and charger specifications when requesting electrical parts
Model-Specific Parts Inquiries
Bending Components
Ask about compatible RBC-16B bending parts
Cutting Components
Ask about compatible cutting and wear parts
Control Components
Confirm the correct control parts for your model
Motor Components
Provide the model and voltage for motor parts inquiries
Electrical Components
Confirm compatibility with your battery configuration
Fasteners & Hardware
Request identification of the required fasteners
Need help with maintenance or repair? Contact POWER ELECTRICAL for RBC-16B maintenance guidance and parts identification. Confirm model applicability before using a repair video.
PRODUCT INFORMATION & TECHNICAL SUPPORT
Find RBC-16B specifications, battery configuration, operating guidance and answers to common product questions. Contact POWER ELECTRICAL for model-specific documents and technical support.
RBC-16B Documents
Request technical and operating information for the RBC-16B rebar bender and cutter.
Need Help With Your RBC-16B?
Access repair guidance, replacement parts and direct technical assistance from POWER ELECTRICAL.
RBC-16B FAQ
Answers about RBC-16B bending capacity, cordless power, battery configuration, cycle times, maintenance and product support.
Still have a question about the RBC-16B?
Send us your required rebar size, voltage, application or technical question and our team will help you select, configure or support the correct product.
NEED THE RIGHT REBAR BENDING SOLUTION?
Tell us your required rebar diameter, bending angle, target bending radius, battery and charger requirements and order quantity. Our team can help you confirm whether the RBC-16B or another POWER ELECTRICAL rebar cutting and bending solution best fits your application.
