RBC-16 Rebar Bender Cutter
Portable Corded Electric Tool | 110V or 220V
The RBC-16 rebar cutter and bender combines cutting and bending in one portable electro-hydraulic tool. With 900W power and an adjustable 0–180° bending range, it handles rebar up to #5 / 16mm. Available in separate 110V and 220V versions, it weighs 18kg and features an ergonomic handle, an angle-controlled bending module and a precision hydraulic system.
PORTABLE POWER FOR PROFESSIONAL REBAR CUTTING & BENDING
The RBC-16 portable electric rebar bender and cutter combines two rebar preparation functions in one corded tool, with a maximum bending capacity of #5 / 16 mm Grade 60 rebar. Its 900 W power rating and 0°–180° bending range support reinforcement preparation wherever a suitable electrical supply is available.
With a net weight of 18 kg, the RBC-16 can be moved between work areas. Its specified operating times are a 2-second cutting / 4-second bending cycle and a wide 0° to 180° bending range for rebar forming within the specified material limits.
#5 / 16 mm Bending Capacity
Bends Grade 60 rebar up to 5/8 in. (16 mm / #5). Match the bar grade and diameter to the rated bending capacity.
900 W Corded Electric Power
Choose a 110V or 220V version to match your power supply. The RBC-16 uses an external electrical connection for operation.
0°–180° Angle Control
A 0°–180° bending range supports a variety of reinforcement shapes. Follow the operating instructions for each bend.
Cutting 2 s / Bending 4 s
Specified cutting and bending times are 2 seconds and 4 seconds respectively. Actual cycle times depend on the bar and operating conditions.
BUILT AROUND A PORTABLE CORDED TOOL
The RBC-16 combines rebar cutting and bending in a portable electric tool. Its 900 W power rating, 0°–180° bending range and 18 kg net weight suit rebar preparation across work areas. Available in separate 110V and 220V versions, it requires an external power supply.
PORTABLE ELECTRIC CUTTING & BENDING ARCHITECTURE
Maximum bending capacity: #5 / 16 mm (5/8 in.) Grade 60 rebar. Machine dimensions: 660 × 165 × 220 mm.
Ergonomic Handle
The ergonomic handle provides a comfortable grip for handling and positioning the RBC-16 between work areas.
Precision Pressure Release Valve
The precision pressure release valve allows controlled release of hydraulic pressure during operation, as directed in the operating instructions.
Angle-Controlled Bending Module
The bending module allows the operator to set the required bending angle within the 0°–180° range for rebar preparation.
Cutting Head Assembly
The cutting head assembly houses the cutting components for the RBC-16’s integrated rebar cutting function.
Precision Hydraulic System
The precision hydraulic system delivers the force required for the RBC-16’s rebar cutting and bending operations.
BENDING CAPACITY UP TO #5 GRADE 60 REBAR
The RBC-16 provides a maximum bending capacity for Grade 60 reinforcing steelof 16 mm / 5/8 in. / #5 rebar, a wide 0° to 180° bending range and specified 2-second cutting / 4-second bending times for rebar preparation within the rated material limits.
The 16 mm / #5 rating is the maximum bending diameter for Grade 60 rebar. Confirm cutting capacity separately with POWER ELECTRICAL. Follow the product manual and specified material limits.
Construction
Prepare reinforcement bends for columns, beams and foundations within the #5 / 16 mm Grade 60 bending rating.
Rebar Fabrication
Combine cutting and bending tasks in one portable tool for reinforcement preparation. Confirm the required cutting capacity before selection.
Infrastructure
Move the 18 kg tool between work areas where a suitable 110V or 220V power supply is available.
Bridge Engineering
Prepare reinforcement bends for bridge-related work where the specified bar grade, diameter and bending requirements match the tool.
Need a different bending capacity? Explore the POWER ELECTRICAL rebar bender cutter range to select the right machine for your required bar size, bending angle and application.
COMPARE REBAR TOOLS & CUTTERSREBAR CUTTING & BENDING IN ACTION
Watch the RBC-16 portable electric rebar bender and cutter demonstration. Explore its corded operation and refer to the specifications below for bending capacity, bending angle and motor power.

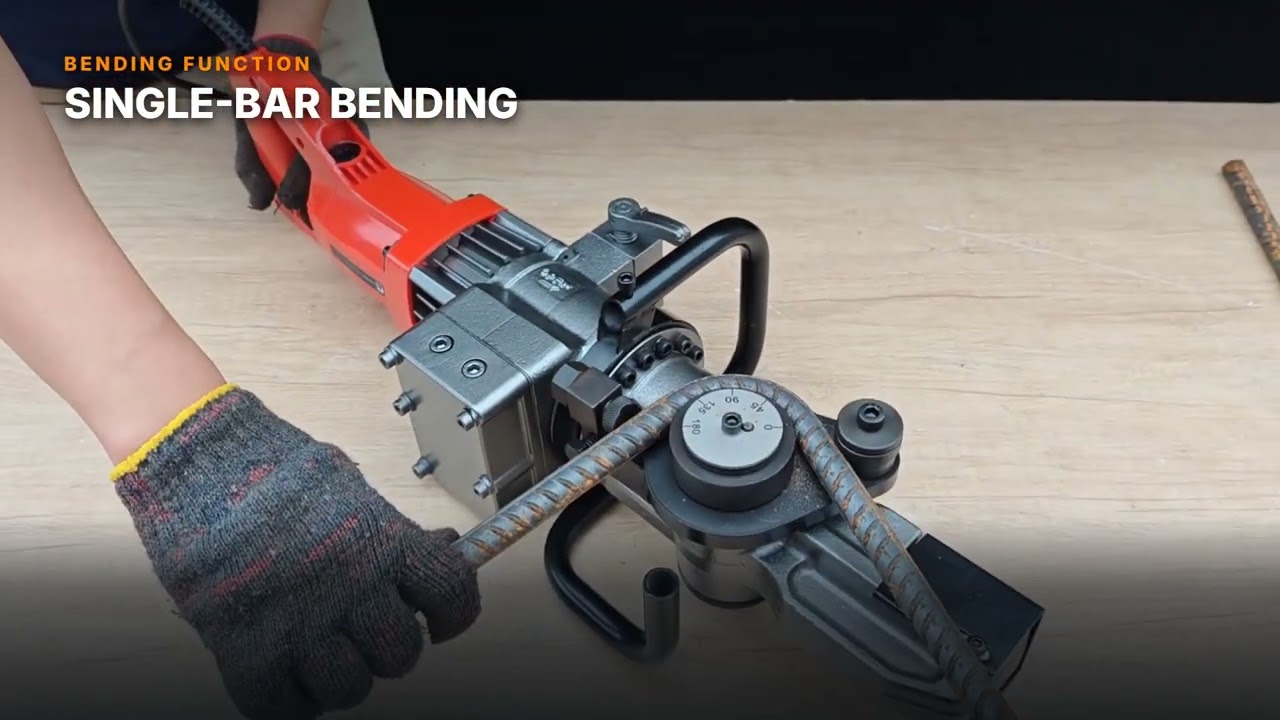

Watch the RBC-16 in Action
See the RBC-16 portable electric rebar bender and cutter in operation.
Portable Electric Rebar Bender & Cutter
RBC-16 TECHNICAL DATA
Review the RBC-16 specifications: maximum bending diameter of #5 / 16 mm Grade 60 rebar, 0°–180° bending angle, 900 W power, 110V or 220V versions, dimensions and packaging.
Product Specifications
Model RBC-16Multiple Voltage Configurations Available
The RBC-16 is available in separate 110V and 220V versions. Specify your required voltage and plug configuration when ordering.
The maximum diameter listed above is the bending rating for Grade 60 rebar. Contact POWER ELECTRICAL to confirm cutting capacity, voltage configuration and the latest technical information before ordering.
PROTECTIVE PACKAGING & PRODUCT SUPPORT
The RBC-16 is packed in an inner iron box with an outer 7-layer corrugated cardboard box. Gross weight is 27 kg. Contact POWER ELECTRICAL to confirm the accessory list and model-specific service parts for your order.
Machine & Packaging
RBC-16 machine and packaging specifications for handling and shipment.
RBC-16 Rebar Bender Cutter
Portable corded electric machine; net weight 18 kg
Inner Iron Box
Inner protective packaging for the machine
Outer 7-Layer Carton
Outer 7-layer corrugated cardboard box
27 kg Gross Weight
Packing dimensions: 710 × 280 × 280 mm
Operation & Service Support
Contact our team to identify compatible parts and confirm availability for your RBC-16.
Operating Guidance
Request the RBC-16 operating and maintenance instructions
Bending Components
Confirm model-specific bending parts with our team
Electrical Parts
Specify 110V or 220V when requesting electrical parts
Model-Specific Parts Inquiries
Bending Components
Ask about compatible RBC-16 bending parts
Cutting Components
Ask about compatible cutting and wear parts
Control Components
Confirm the correct control parts for your model
Motor Components
Provide the model and voltage for motor parts inquiries
Electrical Components
Confirm compatibility with your voltage version
Fasteners & Hardware
Request identification of the required fasteners
Need help with maintenance or repair? Contact POWER ELECTRICAL for RBC-16 maintenance guidance and parts identification. Confirm model applicability before using a repair video.
PRODUCT INFORMATION & TECHNICAL SUPPORT
Find RBC-16 specifications, voltage options, operating guidance and answers to common product questions. Contact POWER ELECTRICAL for model-specific documents and technical support.
RBC-16 Documents
Request technical and operating information for the RBC-16 rebar bender and cutter.
Need Help With Your RBC-16?
Access repair guidance, replacement parts and direct technical assistance from POWER ELECTRICAL.
RBC-16 FAQ
Answers about RBC-16 bending capacity, corded power, voltage options, cycle times, maintenance and product support.
Still have a question about the RBC-16?
Send us your required rebar size, voltage, application or technical question and our team will help you select, configure or support the correct product.
NEED THE RIGHT REBAR BENDING SOLUTION?
Tell us your required rebar diameter, bending angle, target bending radius, voltage, plug type and order quantity. Our team can help you confirm whether the RBC-16 or another POWER ELECTRICAL rebar cutting and bending solution best fits your application.
Talk to Our Product Team
Contact POWER ELECTRICAL for product selection, distributor pricing, technical information and international supply inquiries.
