MHP-32 Electric Hydraulic Hole Puncher
110 V / 220 V Electric Hydraulic Hole Punch (32 mm Hole / 15 mm Plate)
The MHP-32 electric hydraulic hole puncher is a portable corded tool for metal fabrication and installation work. Its 3000 W motor powers hydraulic punching for holes up to 32 mm (1.26 in.), with a maximum material thickness of 15 mm (0.59 in.) and a punching time of approximately 5 seconds.
Maximum thickness 15 mm / 0.59 in.
COMPACT POWER FOR PROFESSIONAL HOLE PUNCHING
The MHP-32 electric hydraulic hole puncher combines a 3000 W electric motor with hydraulic punching action. It produces holes up to 32 mm (1.26 in.) in material up to 15 mm (0.59 in.) thick, with a punching time of approximately 5 seconds.
Choose the matching punch and die for your required hole size. Five matched punch-and-die sets are included as standard: 17 mm, 20.5 mm, 26 mm, 28 mm and 32 mm. The corded MHP-32 is available in 110 V or 220 V configurations for workshop and on-site metalworking applications.
32 mm Hole Diameter
Maximum hole diameter of 1.26 in. (32 mm), with a specified maximum material thickness of 0.59 in. (15 mm).
Electro-Hydraulic Punching
A 3000 W motor drives the hydraulic punching system, with a specified punching time of approximately 5 seconds.
Five Standard Die Sets
Five standard punch-and-die sets in 17 mm, 20.5 mm, 26 mm, 28 mm and 32 mm support a range of round-hole requirements.
Portable Jobsite Design
The MHP-32 weighs 34.5 kg (76.1 lbs) and measures 520 × 160 × 330 mm for transport between work areas.
BUILT AROUND A PROFESSIONAL HYDRAULIC SYSTEM
The MHP-32 combines a 3000 W electric motor with hydraulic punching for professional fabrication and installation work.
COMPACT ELECTRO-HYDRAULIC ARCHITECTURE
A corded electric hydraulic platform for holes up to 32 mm, powered by a 3000 W motor.
Ergonomic Handle
The ergonomic handle provides a comfortable grip for carrying, positioning and operating the MHP-32 electric hydraulic hole puncher.
Precision Punch and Die
The precision punch and die work together to form accurate holes in compatible materials within the specified punching capacity.
High-Strength Punching Frame
The high-strength punching frame provides rigid support for the punch and die during hole punching operations.
Precision Hydraulic Assembly
The precision hydraulic assembly delivers controlled punching force to support smooth and consistent hole punching operations.
3000 W Pure Copper Motor
The 3000 W motor features pure copper windings and supplies power to the hydraulic punching system. Choose the 110 V or 220 V configuration required for your power supply.
BUILT TO PUNCH UP TO 32 mm
The MHP-32 offers a maximum hole diameter of 32 mm (1.26 in.) and a maximum material thickness of 15 mm (0.59 in.). Select the correct mold and confirm material suitability for your fabrication or installation task.
Punching performance depends on material type and strength, thickness, hole diameter and tooling condition. Confirm suitability for your material and follow the operation manual; do not assume the maximum thickness applies to every metal grade.
Steel Plate Workshop
Punching clean holes in steel plates, brackets, base plates and fabricated metal components during workshop processing, assembly and production.
Steel Structure Construction
Creating installation and connection holes in steel plates, angle steel, channels and structural components during steel building erection and onsite assembly.
Solar PV Construction Sites
Punching mounting holes in galvanized steel supports, brackets, channels and connection plates for solar racking installation and onsite adjustments.
Industrial Control Cabinets
Preparing clean holes in cabinet panels, mounting plates and steel enclosures for cable fittings, controls and industrial electrical components.
Need a different hole size or thickness? Send us your material grade, thickness and required hole diameter so our team can help select the right hole puncher and tooling.
DISCUSS YOUR APPLICATIONIS THE MHP-32 RIGHT FOR YOU?
Choose the MHP-32 when your hole diameter and material thickness are within its specified range and corded power is available. Confirm your material grade and punch-and-die requirements before ordering.
Choose the MHP-32 if you need:
- Holes up to 32 mm / 1.26 in. in diameter
- Material thickness up to 15 mm / 0.59 in., subject to material suitability
- Approximately 5-second punching time
- A 3000 W corded electric hydraulic tool
- 110 V or 220 V power configurations
- Five standard punch-and-die sets: 17 mm, 20.5 mm, 26 mm, 28 mm and 32 mm
Your application needs more capacity or cordless operation
- You require a hole diameter larger than 32 mm
- Your material thickness exceeds 15 mm
- You need cordless operation where mains power is unavailable
- You require slots or other hole shapes beyond the listed round molds
- Your workpiece geometry prevents correct positioning of the punch and die
- You need suitability confirmed for a particular material grade or strength
MHP-32 MOLD SIZE GUIDE
Match the punch and die to the required hole diameter. The MHP-32 includes five matched punch-and-die sets as standard: 17 mm, 20.5 mm, 26 mm, 28 mm and 32 mm.
| Standard Die Set | Hole Diameter | Imperial Diameter | Tooling | Selection |
|---|---|---|---|---|
| Size 1 | 17 mm | 0.67 in. | Matched punch & die | For a 17 mm round hole |
| Size 2 | 20.5 mm | 0.81 in. | Matched punch & die | For a 20.5 mm round hole |
| Size 3 | 26 mm | 1.02 in. | Matched punch & die | For a 26 mm round hole |
| Size 4 | 28 mm | 1.10 in. | Matched punch & die | For a 28 mm round hole |
| Size 5 | 32 mm | 1.26 in. | Matched punch & die | For a 32 mm round hole |
Selection rule: choose the mold by the required hole diameter, then confirm material grade and thickness. The specified maximum hole diameter is 32 mm and maximum thickness is 15 mm. Always use compatible, matched tooling. 32 mm tooling: the included 32 mm punch-and-die set matches the MHP-32 maximum hole diameter of 32 mm.
MHP-32 PRODUCT VIDEO

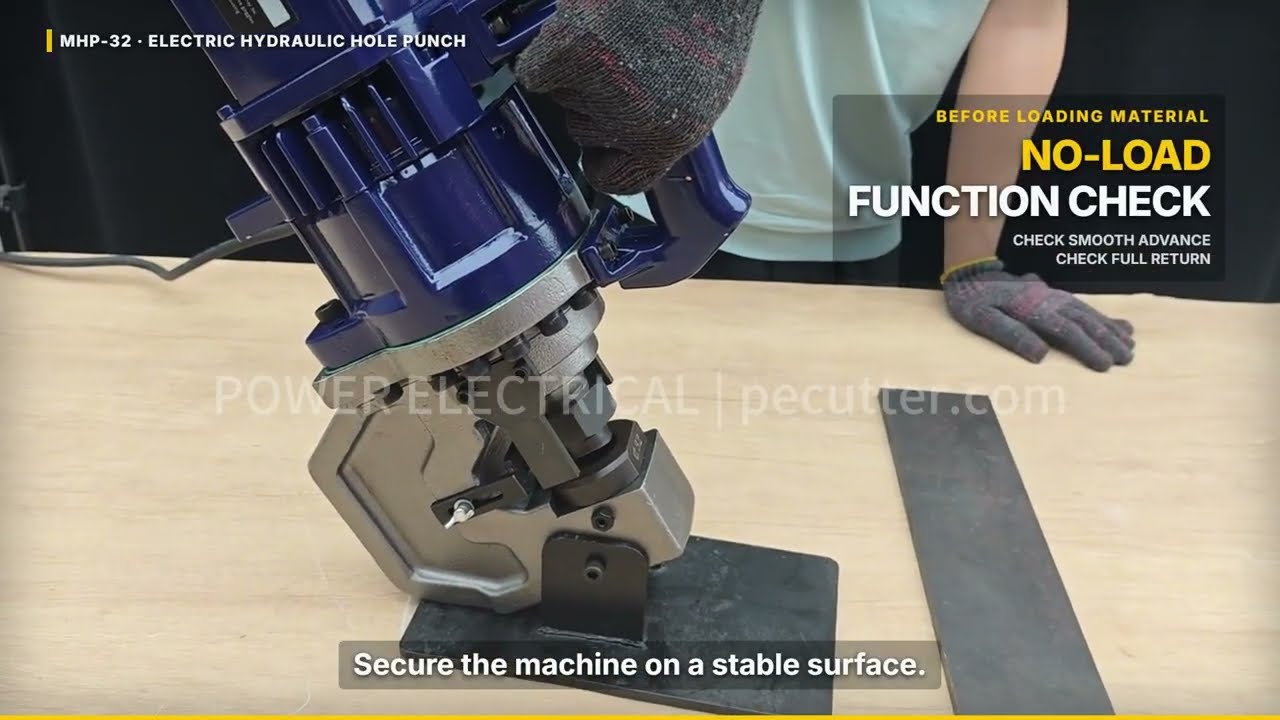

Watch the MHP-32 electric hydraulic hole puncher in operation. Explore its hydraulic punching action for metal fabrication and installation work.
Watch the MHP-32 in Action
See the MHP-32 electric hydraulic hole puncher in action. Refer to the technical specifications below for capacity, power and dimensions.
MHP-32 Electric Hydraulic Hole Puncher
MHP-32 TECHNICAL DATA
Review the MHP-32 electric hydraulic hole puncher specifications, including hole diameter, material thickness, mold sizes, electrical ratings, dimensions and packaging.
Product Specifications
Model MHP-32Multiple Voltage Configurations Available
MHP-32 is available in 110 V and 220 V configurations. Contact POWER ELECTRICAL to confirm the correct voltage and plug configuration for your market.
Punching performance depends on material grade, strength, thickness, hole diameter and tooling condition. Confirm the voltage, plug and supplied tooling configuration before ordering. Metric dimensions are the source values; imperial conversions are approximate.
WHAT'S INCLUDED & READY TO SUPPORT
The MHP-32 is packed in an inner iron box and an outer 7-layer corrugated cardboard box. Gross weight is 47 kg (103.6 lbs). Five matched punch-and-die sets are included as standard: 17 mm, 20.5 mm, 26 mm, 28 mm and 32 mm.
What's Included
MHP-32 packaging with five standard punch-and-die sets: 17 mm, 20.5 mm, 26 mm, 28 mm and 32 mm.
MHP-32 Hole Puncher
3000 W electric hydraulic punching tool
Inner Iron Box
Protective packaging for storage and transport
Punch & Die 5 Standard Sets
17 mm / 20.5 mm / 26 mm / 28 mm / 32 mm — included as standard
7-Layer Outer Box
Corrugated cardboard shipping carton
Service & Maintenance
Essential maintenance components for reliable long-term operation.
Punches & Dies
Matched tooling for the required hole diameter
Hydraulic Seals
Confirm compatible hydraulic service parts
Motor Service Parts
Contact us for motor maintenance components
Replacement Parts Support
Punch & Die Sets
Matching punch and die components
Motor Wear Parts
Confirm part type and compatibility
Hydraulic Seal Kit
Seals for hydraulic service
Motor Components
Service components for motor repair
Hydraulic Components
Pump and hydraulic system parts
Fasteners & Hardware
Selected replacement hardware
Need help with maintenance or repair? Access repair videos or contact POWER ELECTRICAL for technical support and MHP-32 replacement parts.
PRODUCT INFORMATION & TECHNICAL SUPPORT
Access essential MHP-32 product documents, repair resources and technical support. Find operating information, maintenance guidance and answers to common questions in one place.
MHP-32 Documents
Request the MHP-32 operation manual or explore the POWER ELECTRICAL product catalog.
Need Help With Your MHP-32?
Access repair guidance, replacement parts and direct technical assistance from POWER ELECTRICAL.
MHP-32 FAQ
Common questions about MHP-32 punching capacity, operation, maintenance and product support.
Still have a question about the MHP-32?
Send us your material grade, thickness, required hole diameter or technical question. Our team can help you select the MHP-32 configuration and compatible tooling for your application.
NEED THE RIGHT HOLE PUNCHING SOLUTION?
Tell us your material grade, thickness, required hole diameter, voltage and order quantity. Our team can help you select an electric hydraulic hole puncher and matched tooling for fabrication, installation, distribution or OEM projects.
Talk to Our Product Team
Contact POWER ELECTRICAL for product selection, distributor pricing, technical information and international supply inquiries.
