MHP-20B Cordless Hydraulic Hole Puncher
21 V DC Battery Power · 20.5 mm Hole / 6 mm Plate
The MHP-20B cordless hydraulic hole puncher brings 21 V DC battery power to metal fabrication and installation work. It punches holes from 6 to 20.5 mm in material up to 6 mm thick, with a specified punching time of approximately 3 seconds and approximately 180 punches per charge.
Maximum thickness 6 mm / 0.24 in.
CORDLESS POWER FOR PROFESSIONAL HOLE PUNCHING
The MHP-20B cordless hydraulic hole puncher combines 21 V DC battery power with hydraulic punching action. Its specified punching diameter range is 6–20.5 mm, with a maximum material thickness of 6 mm (0.24 in.) and a punching time of approximately 3 seconds.
Move between fabrication and installation tasks without a mains cable connected to the tool. The specified battery performance is approximately 180 punches per charge, with a charging time of 180 minutes. Standard mold hole diameters are 6.5, 9, 13, 17 and 20.5 mm. Actual runtime depends on the application and battery conditions.
20.5 mm Hole Diameter
Punching diameter range of 6–20.5 mm, with a specified maximum material thickness of 6 mm (0.24 in.).
21 V Cordless Hydraulic Power
Battery-powered hydraulic punching with an approximately 3-second punching time and approximately 180 punches per charge.
Five Standard Mold Sizes
Standard mold hole diameters of 6.5, 9, 13, 17 and 20.5 mm support a range of round-hole requirements.
Portable Jobsite Design
The MHP-20B has a net weight of 11 kg (24.3 lbs) and machine dimensions of 370 × 285 × 130 mm.
BUILT AROUND A PROFESSIONAL HYDRAULIC SYSTEM
The MHP-20B cordless hydraulic hole puncher combines a brushless motor, a 360° rotating body, a high-strength punching frame, a precision pressure relief valve and an ergonomic handle for professional fabrication and installation work.
CORDLESS ELECTRO-HYDRAULIC ARCHITECTURE
A 21 V DC brushless hydraulic platform with a 360° rotating body, designed for punching holes from 6 to 20.5 mm.
Brushless Motor
The brushless motor drives the hydraulic punching system using 21 V DC battery power, supporting cordless operation for fabrication and installation tasks.
360° Rotating Body
The body rotates through 360°, allowing the operator to adjust the tool orientation for positioning and access in different working locations.
High-Strength Punching Frame
The high-strength punching frame supports the punch and die during operation. The specified punching diameter range is 6–20.5 mm, with a maximum material thickness of 6 mm.
Precision Pressure Relief Valve
The precision pressure relief valve allows controlled release of hydraulic pressure. Operate the valve according to the product manual.
Ergonomic Handle
The ergonomic handle provides a comfortable grip for carrying, positioning and controlling the MHP-20B cordless hydraulic hole puncher.
BUILT TO PUNCH UP TO 20.5 mm
The MHP-20B cordless hydraulic hole puncher has a specified punching diameter range of 6–20.5 mm and a maximum material thickness of 6 mm (0.24 in.). Select the correct mold and confirm material suitability for your fabrication or installation task.
Punching performance depends on material type and strength, thickness, hole diameter and tooling condition. Confirm suitability for your material and follow the operation manual; do not assume the maximum thickness applies to every metal grade.
Steel Plate Workshop
Punching clean holes in steel plates, brackets, base plates and fabricated metal components during workshop processing, assembly and production.
Steel Structure Construction
Creating installation and connection holes in steel plates, angle steel, channels and structural components during steel building erection and onsite assembly.
Solar PV Construction Sites
Punching mounting holes in galvanized steel supports, brackets, channels and connection plates for solar racking installation and onsite adjustments.
Industrial Control Cabinets
Preparing clean holes in cabinet panels, mounting plates and steel enclosures for cable fittings, controls and industrial electrical components.
Need a different hole size or thickness? Send us your material grade, thickness and required hole diameter so our team can help select the right hole puncher and tooling.
DISCUSS YOUR APPLICATIONIS THE MHP-20B RIGHT FOR YOU?
Choose the MHP-20B when you need cordless mobility and your required hole diameter and material thickness are within its specified capacity. Confirm your material grade, tooling and battery configuration before ordering.
Choose the MHP-20B if you need:
- Holes within the 6–20.5 mm punching diameter range
- Material thickness up to 6 mm / 0.24 in.
- Approximately 3-second punching time
- 21 V DC cordless hydraulic power for mobile work
- Approximately 180 punches per charge, depending on application
- Standard mold diameters of 6.5, 9, 13, 17 and 20.5 mm
Your application needs a different capacity or power configuration
- You require holes outside the 6–20.5 mm diameter range
- Your material thickness exceeds 6 mm
- You prefer a corded tool for extended work where mains power is available
- You require slots or other hole shapes beyond the listed round molds
- Your workpiece geometry prevents correct positioning of the punch and die
- You need suitability confirmed for a particular material grade or strength
MHP-20B MOLD SIZE GUIDE
The MHP-20B has a specified punching diameter range of 6–20.5 mm. The five standard mold hole diameters are listed below; the smallest standard mold is 6.5 mm. If you need a 6 mm hole, confirm tooling availability before ordering.
| Mold Option | Hole Diameter | Imperial Diameter | Tooling | Selection |
|---|---|---|---|---|
| Size 1 | 6.5 mm | 0.26 in. | Matched punch & die | For a 6.5 mm round hole |
| Size 2 | 9 mm | 0.35 in. | Matched punch & die | For a 9 mm round hole |
| Size 3 | 13 mm | 0.51 in. | Matched punch & die | For a 13 mm round hole |
| Size 4 | 17 mm | 0.67 in. | Matched punch & die | For a 17 mm round hole |
| Size 5 | 20.5 mm | 0.81 in. | Matched punch & die | For a 20.5 mm round hole |
Selection rule: choose the mold by the required hole diameter, then confirm material grade and thickness. The specified maximum hole diameter is 20.5 mm and maximum thickness is 6 mm. Always use compatible, matched tooling.
MHP-20B PRODUCT VIDEO

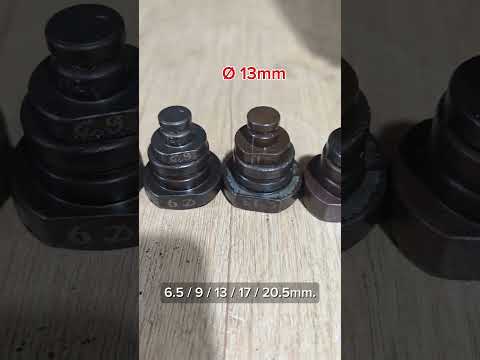

Watch the MHP-20B cordless hydraulic hole puncher in operation. See how this 21 V DC battery-powered tool performs hole punching for metal fabrication and installation work.
Watch the MHP-20B in Action
See the MHP-20B combine cordless battery power with hydraulic punching for holes up to 20.5 mm and material thickness up to 6 mm.
MHP-20B Cordless Hydraulic Hole Puncher
MHP-20B TECHNICAL DATA
Review the MHP-20B cordless hydraulic hole puncher specifications, including punching capacity, battery performance, charging time, standard molds, dimensions and packaging.
Product Specifications
Model MHP-20B21 V DC Cordless Battery System
Specified battery performance is approximately 180 punches per charge, with a charging time of 180 minutes. Contact POWER ELECTRICAL to confirm the battery and charger configuration supplied with your order.
Punching speed and punches per charge depend on material type, thickness, hole diameter, tooling and battery conditions. Confirm the battery capacity, quantity, compatible charger and final supplied configuration before ordering. Metric dimensions are the source values; imperial conversions are approximate.
WHAT'S INCLUDED & READY TO SUPPORT
The MHP-20B is packed in an inner iron box and an outer 7-layer corrugated cardboard box. Gross weight is 19.5 kg (43.0 lbs). Confirm the supplied battery, charger, punch-and-die configuration and accessory list with your order.
What's Included
MHP-20B packaging and standard mold sizes. Confirm the final supplied configuration when ordering. The MHP-20 package image is retained as a temporary reference.
MHP-20B Hole Puncher
21 V DC cordless hydraulic punching tool
Inner Iron Box
Protective packaging for storage and transport
Punch & Die Options
6.5 / 9 / 13 / 17 / 20.5 mm mold sizes
7-Layer Outer Box
Corrugated cardboard shipping carton
Service & Maintenance
Essential maintenance components for reliable long-term operation.
Punches & Dies
Matched tooling for the required hole diameter
Hydraulic Seals
Confirm compatible hydraulic service parts
Motor Service Parts
Contact us for motor maintenance components
Replacement Parts Support
Punch & Die Sets
Matching punch and die components
Motor Wear Parts
Confirm part type and compatibility
Hydraulic Seal Kit
Seals for hydraulic service
Motor Components
Service components for motor repair
Hydraulic Components
Pump and hydraulic system parts
Fasteners & Hardware
Selected replacement hardware
Need help with maintenance or repair? Access repair videos or contact POWER ELECTRICAL for technical support and MHP-20B replacement parts.
PRODUCT INFORMATION & TECHNICAL SUPPORT
Access essential MHP-20B product documents, repair resources and technical support. Find operating information, maintenance guidance and answers to common questions in one place.
MHP-20B Documents
Request the MHP-20B operation manual or explore the POWER ELECTRICAL product catalog.
Need Help With Your MHP-20B?
Access repair guidance, replacement parts and direct technical assistance from POWER ELECTRICAL.
MHP-20B FAQ
Common questions about MHP-20B punching capacity, battery runtime, charging, maintenance and product support.
Still have a question about the MHP-20B?
Send us your material grade, thickness, required hole diameter or technical question. Our team can help you select the MHP-20B configuration and compatible tooling for your application.
NEED THE RIGHT HOLE PUNCHING SOLUTION?
Tell us your material grade, thickness, required hole diameter, battery and charger requirements, and order quantity. Our team can help you select a cordless hydraulic hole puncher and matched tooling for fabrication, installation, distribution or OEM projects.
